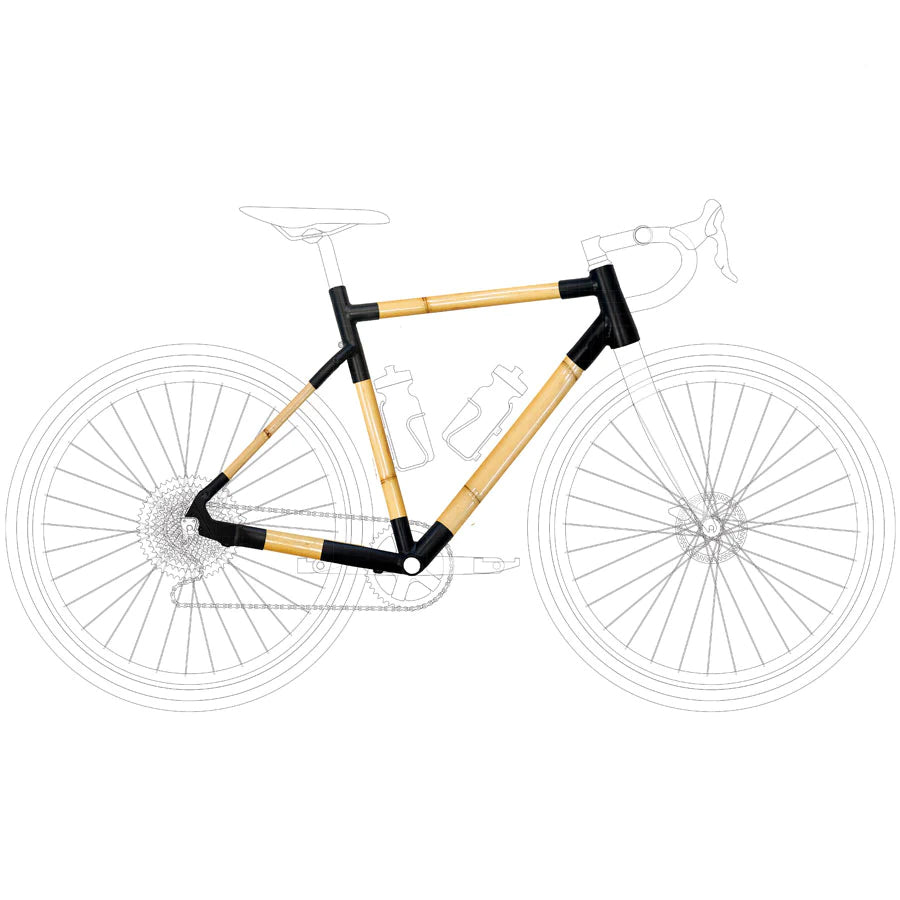

Gravel Lugged Frame Build Kit

£595.00

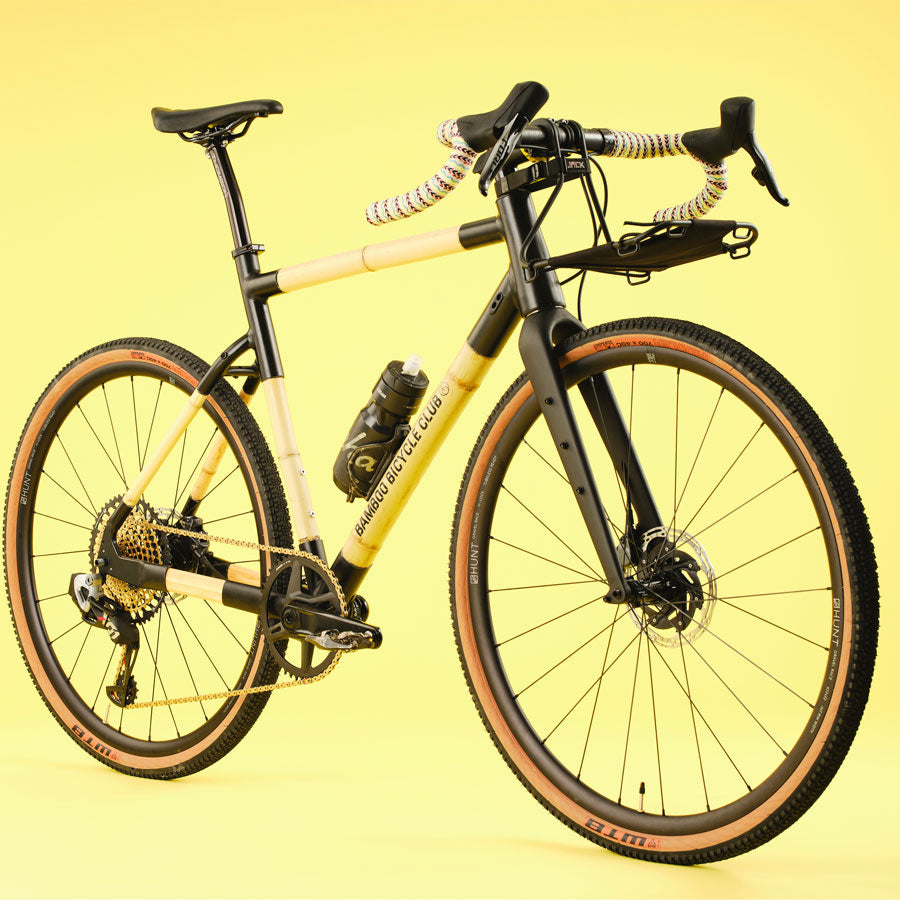

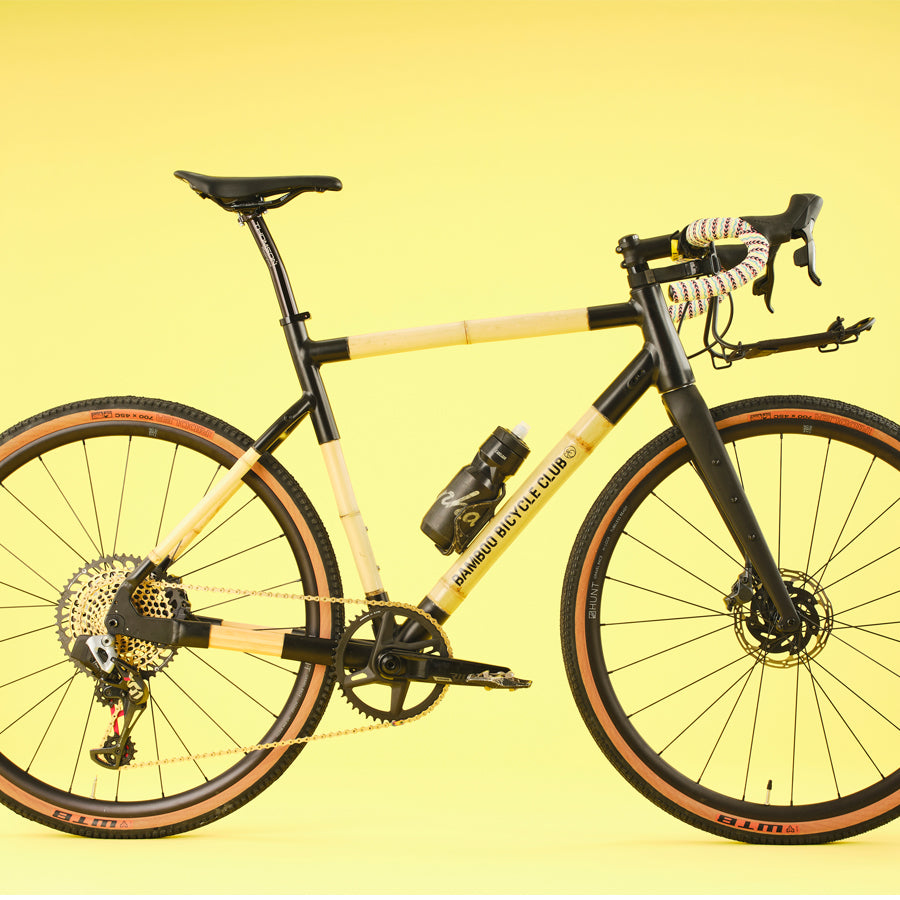

Our Gravel Lugged bike, is the perfect all-rounder for cyclists looking to get the most out of their rides. Featuring a robust aluminium frame and lug design, this bike is perfect for riders looking to take on any terrain. With ample bottle and rack mounts, the Gravel Bike is also perfect for long rides or commuting.

  • Understand how to work with bamboo and shaping to make a bicycle frame
  • Assemble a bicycle jig (which comes with the kit and aligns the frame)
  • Prepare the frame for gluing and how to work safely with glues.
  • Understand how a bike frame is made.
  • Create a frame using our comprehensive manual and videos developed over 10 years.
    • Tapered Headset  ZS44/28.6 / ZS56/40
    • 68mm BSA bottom bracket English threaded
    • 27.2mm/31.6mm seat insert dropper post compatible.

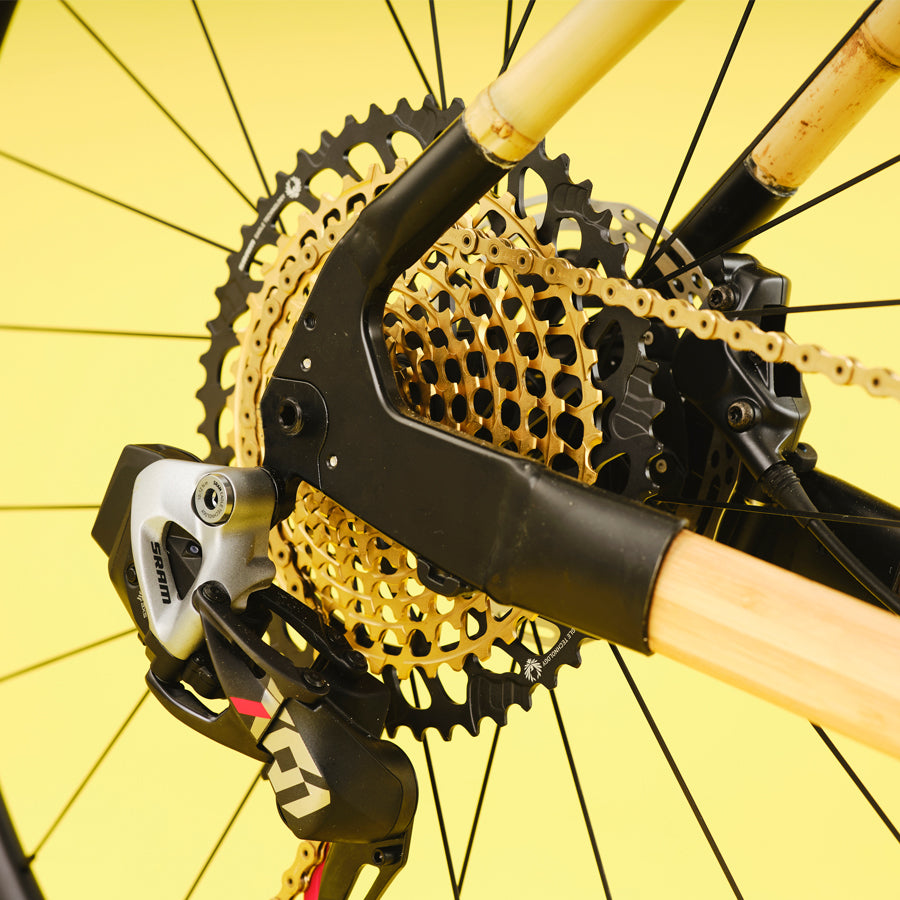

    • Interchangeable modular dropouts compatible with QR/Singlespeed/Geared hub/12mm thru-axle (1.5 thread axle 164mm)

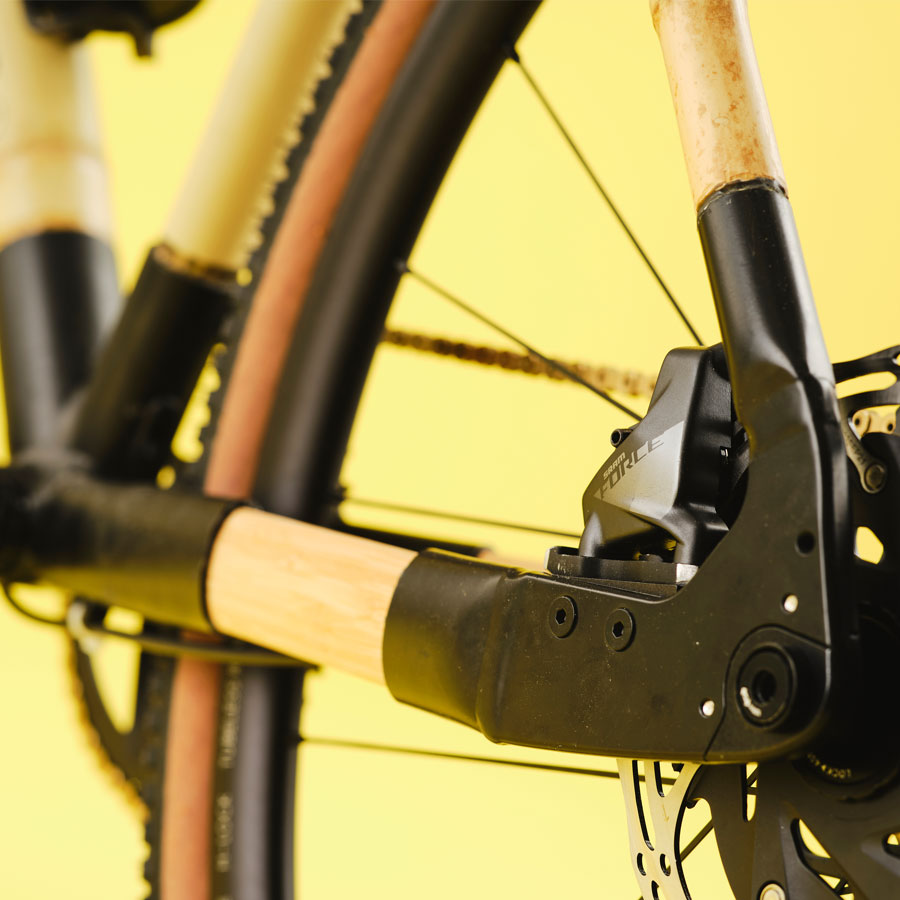

    • Flat mount discs
    • M5 inserts for bottle and rack mounts
    • Dropout mounts for pannier racks and mudguards

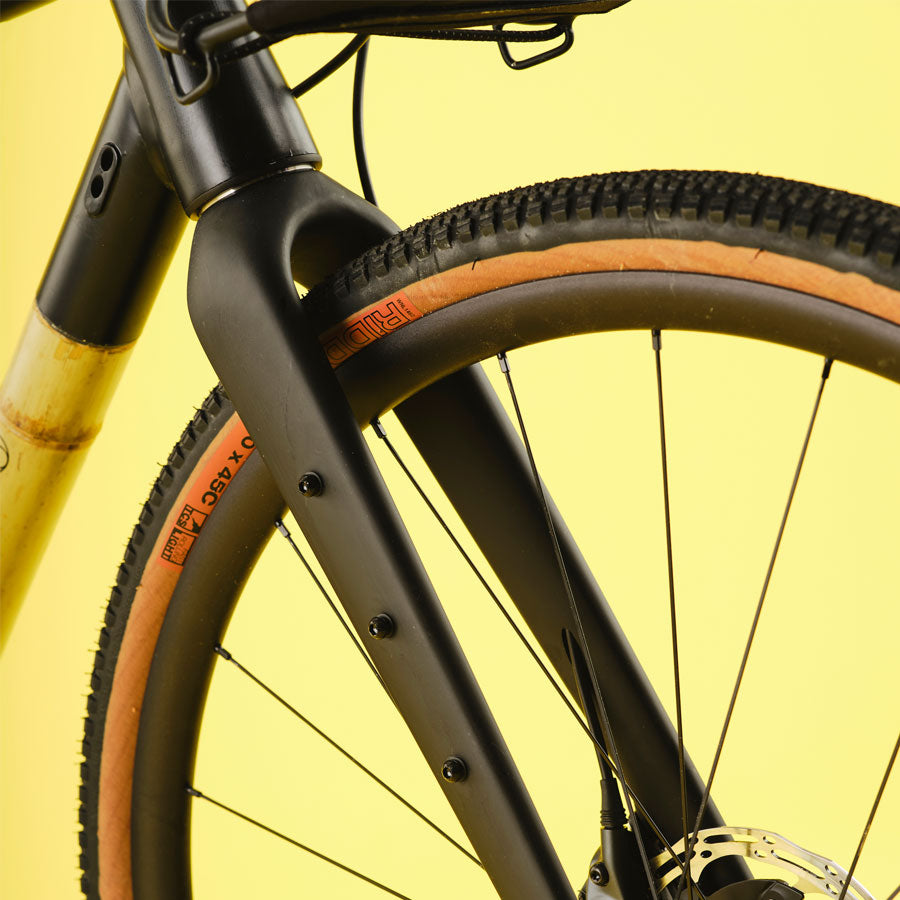

    • Compatible with Gravel fork.

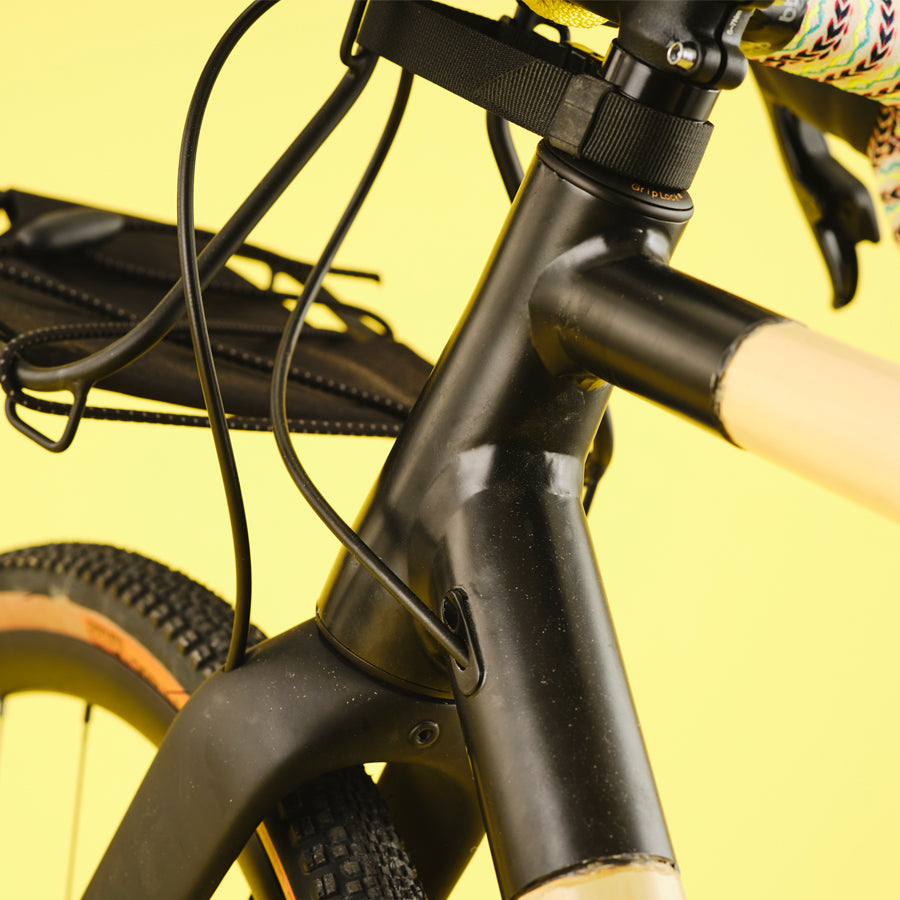

    • Internal cabling

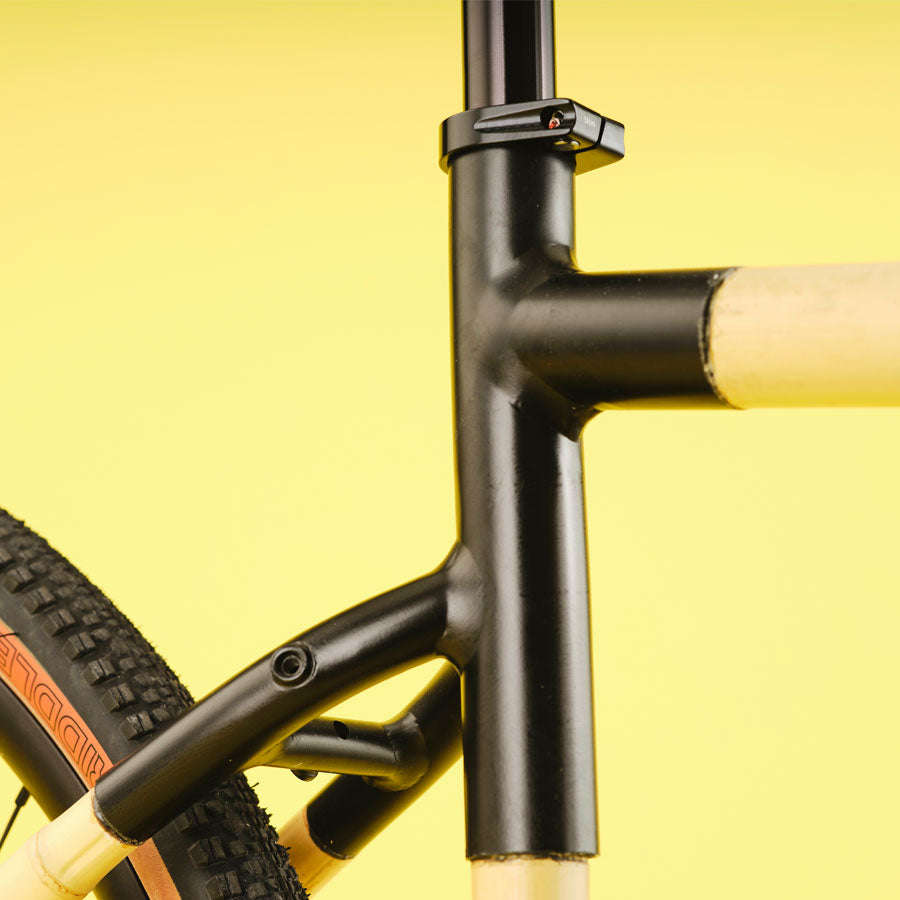

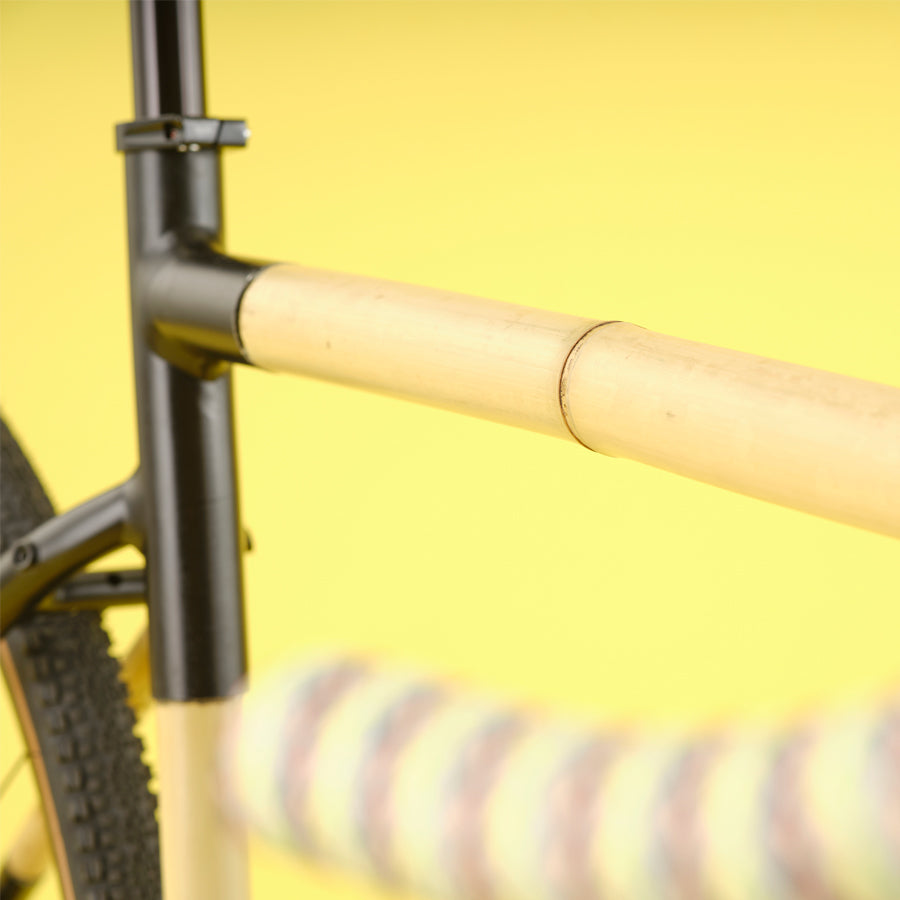

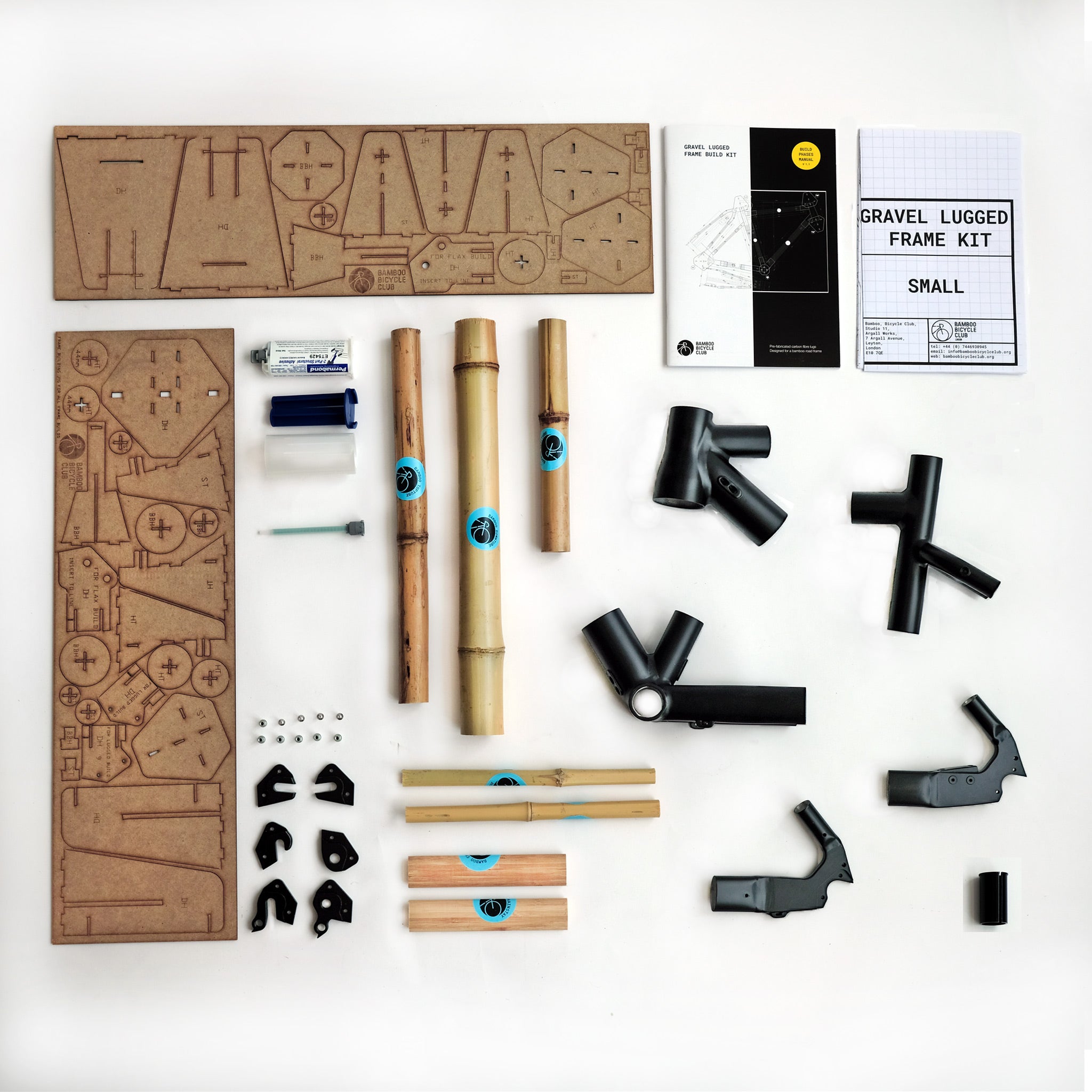

    • Set of lugs for Gravel frame
    • 7 x Bamboo cut to size
    • Plywood laser-cut jig
    • Modular dropout inserts for QR, Single speed, and 12mm thru-Axle
    • Structural adhesive, dispenser, and cleaning wipes
    • Manual/Video
    • A4 plan

    Our frame design is based on a compact frame allowing for good clearances and easily customized with components.

    Size

    Reach

    Stack

    Front center

    Standover height

    Effective Top Tube

    Head Tube

    Seat Tube

    Chainstay

    BB drop

    Head Tube angle

    Seat tube angle

    381

    531

    601

    764

    536

    110

    495

    420

    74

    71.5

    74

    390

    553

    606

    793

    551

    130

    530

    420

    74

    71.5

    74

    400

    582

    625

    822

    569

    160

    560

    420

    74

    71.5

    74

    XL

    406

    601

    638

    847

    579

    180

    590

    420

    74

    71.5

    74
