Custom Frame Kit

Your vision, your geometry, your dream bike — we'll help you build it.

Head tube 44mm tapered

Bottom Bracket 68mm 73mm Eccentric T47 BB30

Seat Tube 27.2mm 31.6mm

£495.00

Sale Sold out

Shipping calculated at checkout.

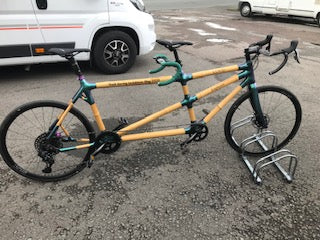

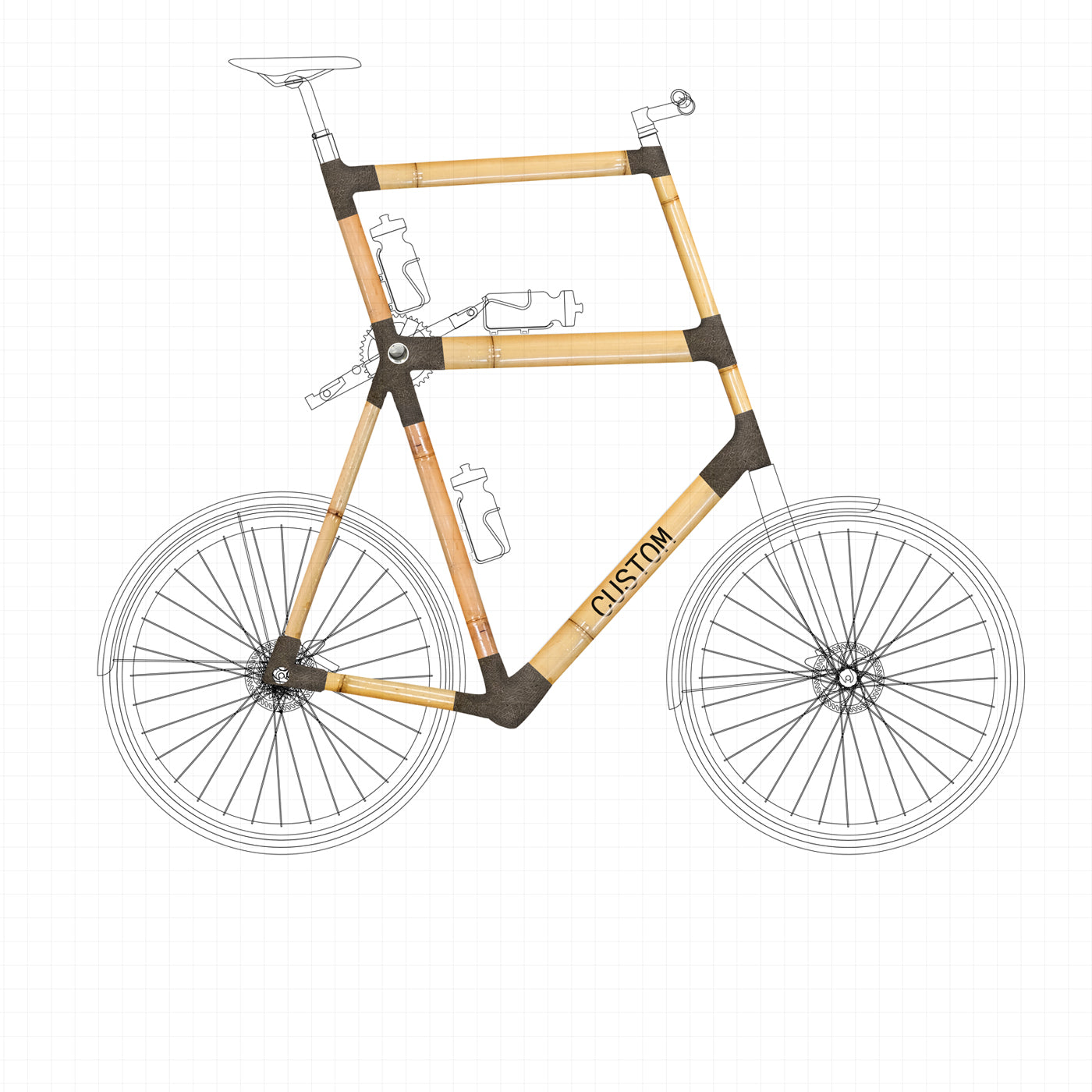

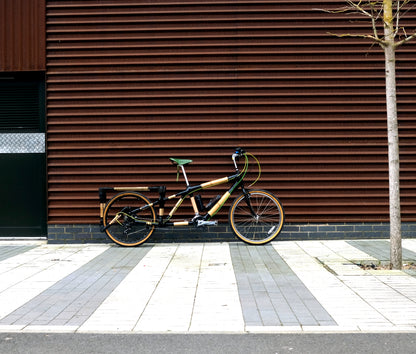

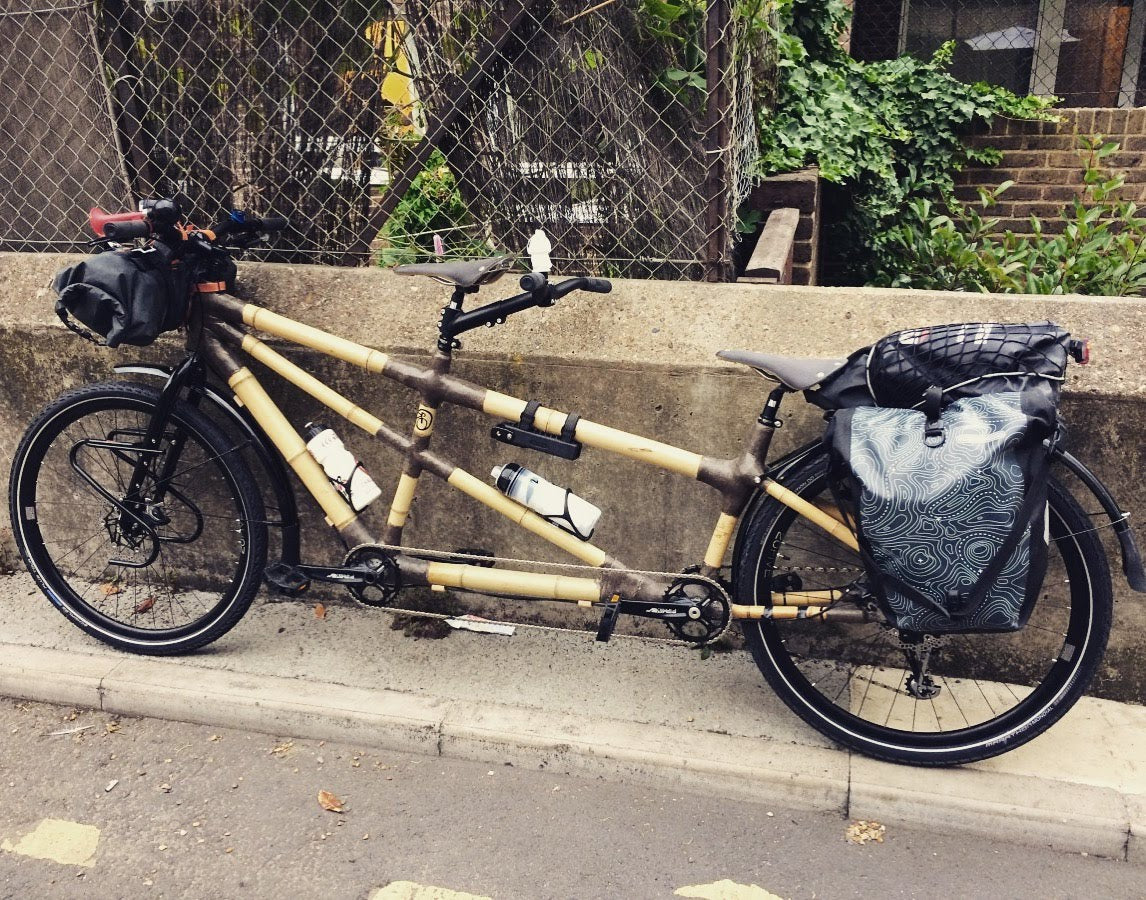

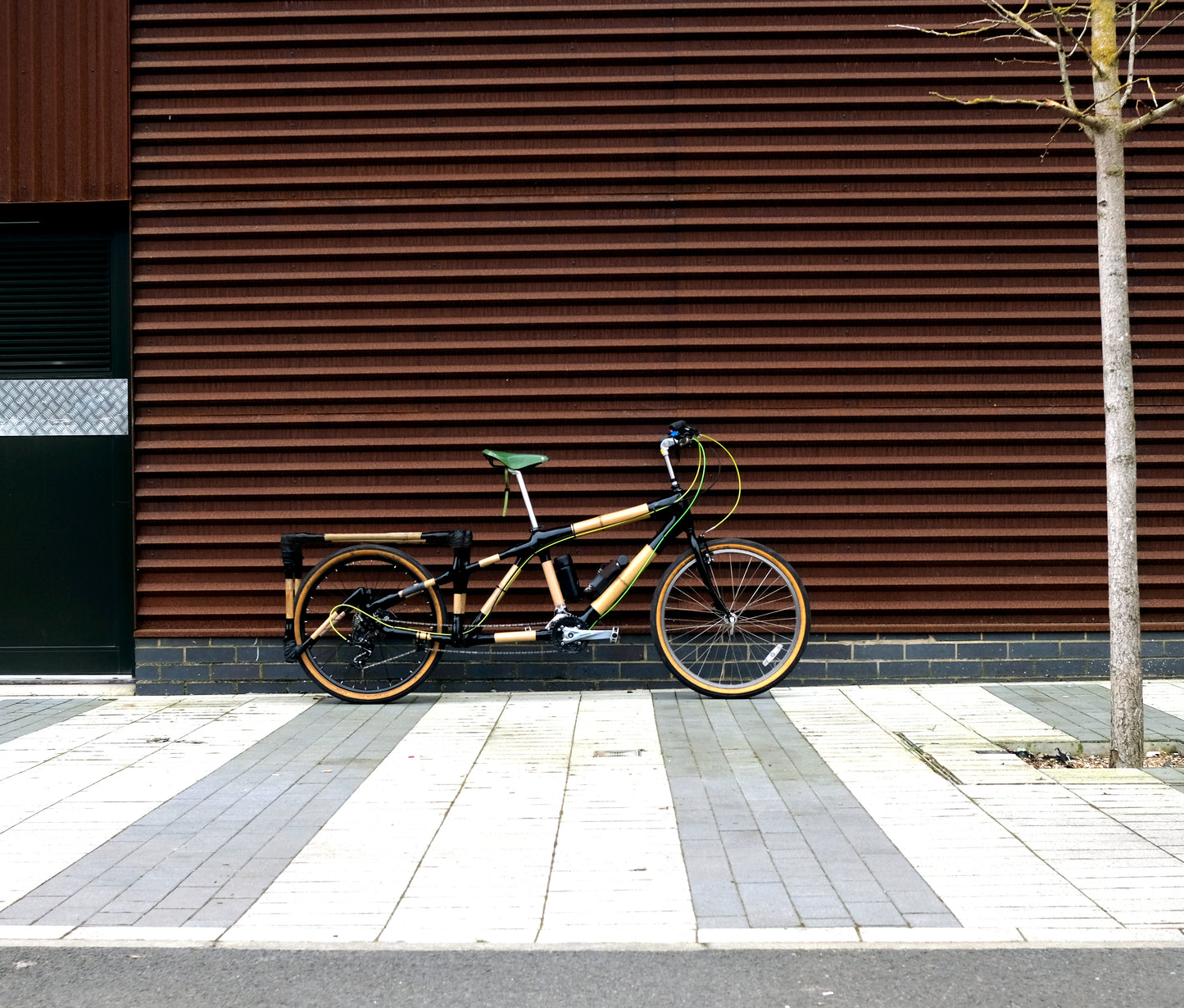

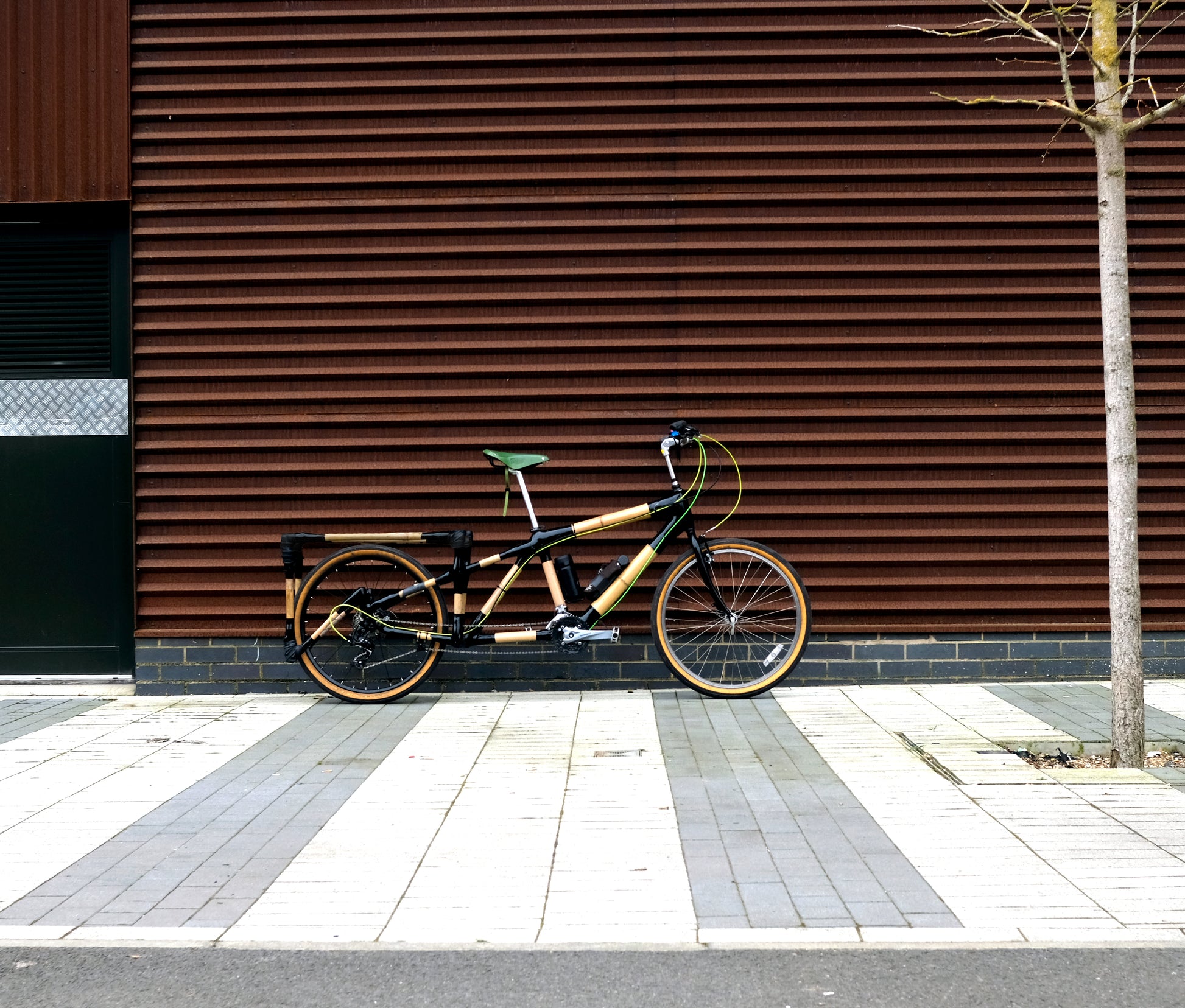

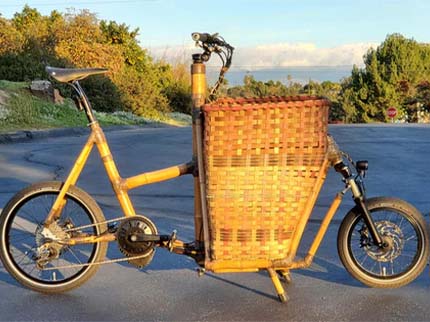

Create your own custom design or kit. The ultimate option for any cyclist. A frame designed exactly how you would like. We also offer custom-designed cargo bikes, tandems, and tall bikes.

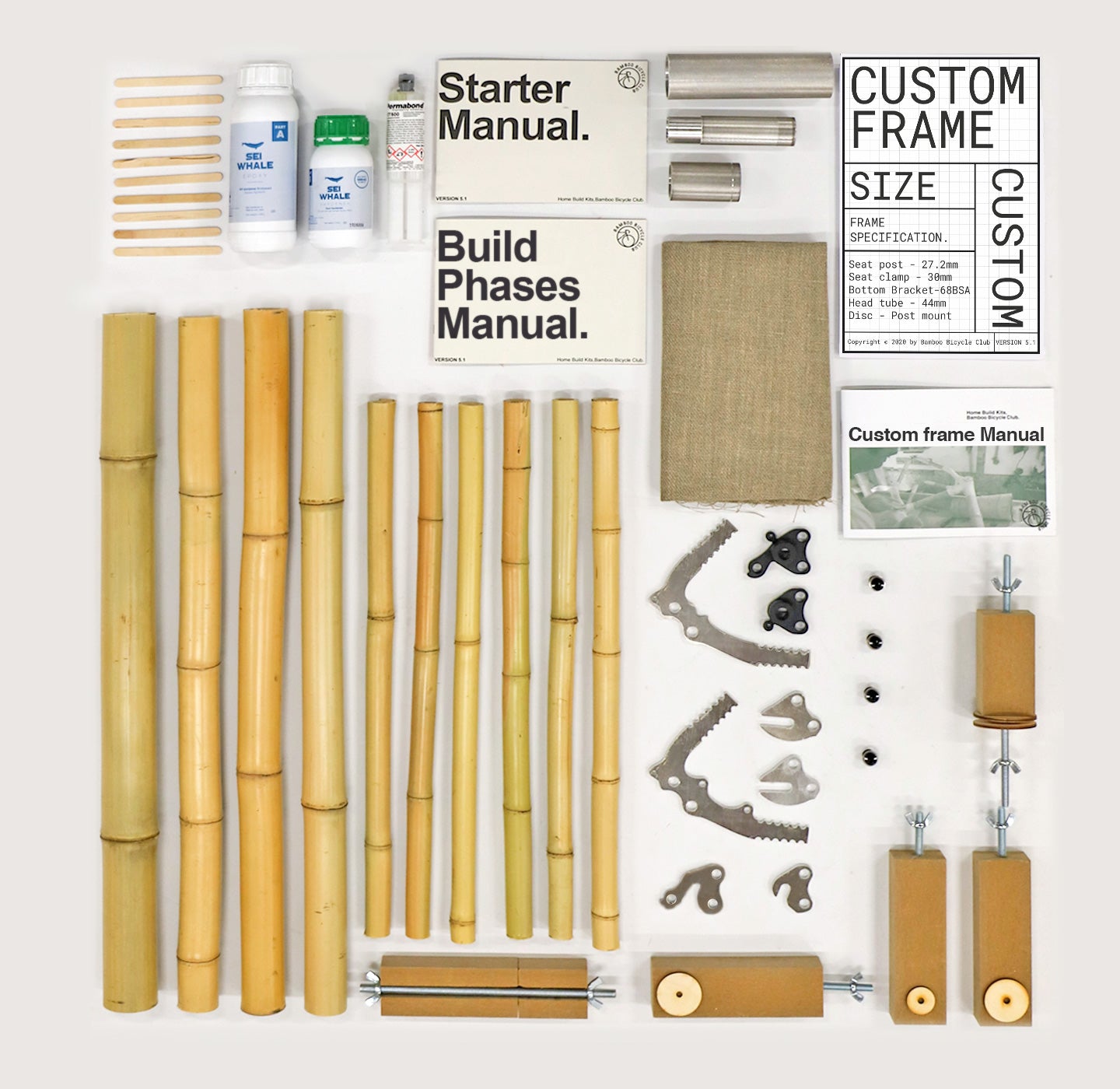

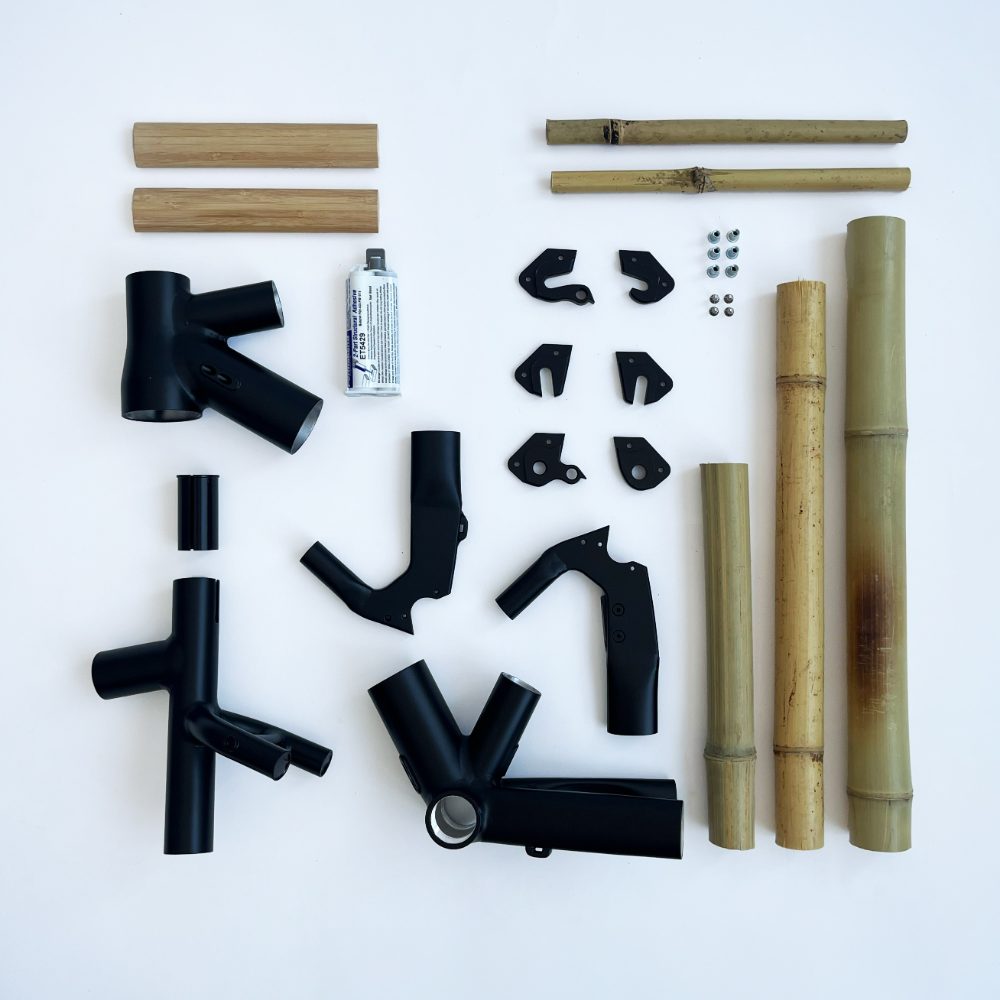

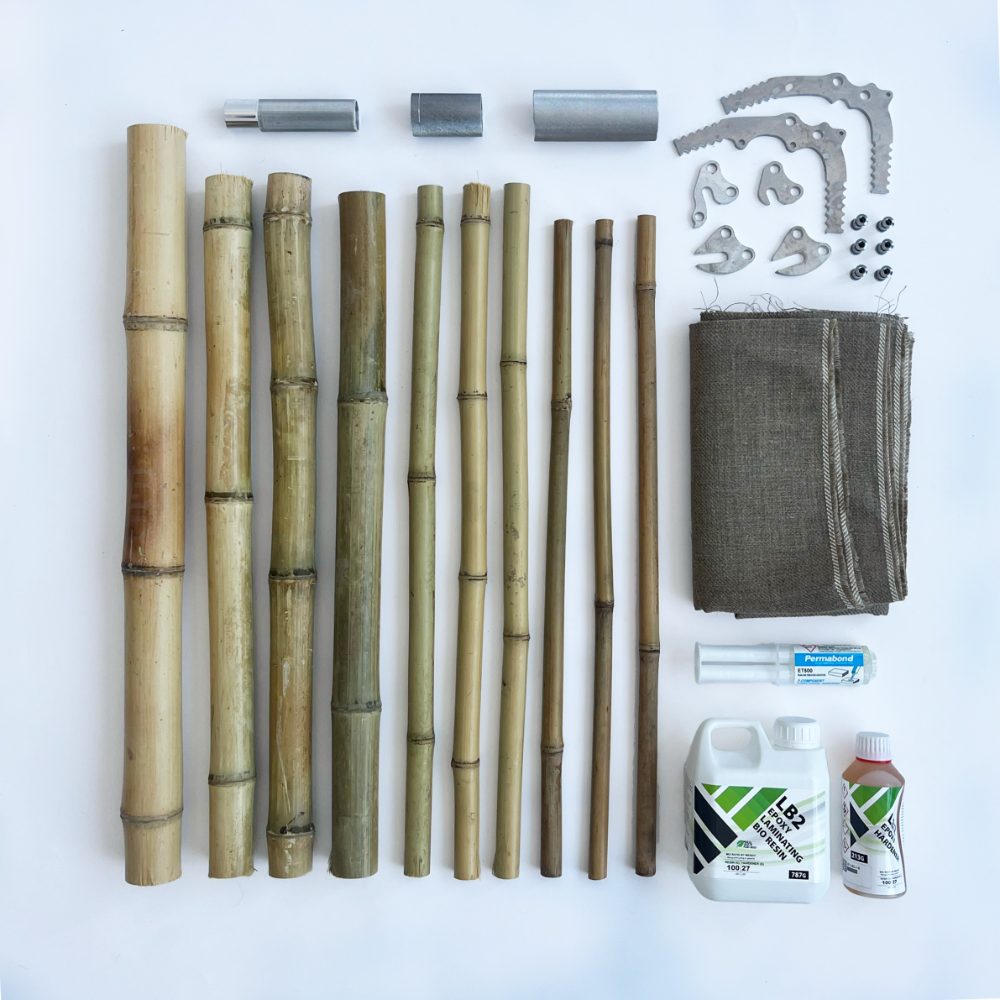

Kit will include

Bamboo tubes (with spares)
A0, full size blueprint
Aluminum 44mm head tube
Aluminum seat sleeve for 27.2mm/31.6mm
Standard 68mm/73mm/T47/Eccentric bottom bracket shell
Modular dropouts with options for 3 fittings – QR, standard horizontal or 12mm thru-axle. Custom-designed dropouts are available
Flax fibre webbing for lugs
Glue for tacking
Epoxy resin and hardener
Instruction manuals – Workmanship Guide, Introduction and Set-up, Step by Step build guide + online videos
Custom-developed bamboo bike jig and fittings
Finishing pack for bottle mounts and cable runs

PLEASE COMPLETE OUR GOOGLE FORM SO WE CAN BEGIN THE DESIGN PROCESS WITH YOU. CLICK LINK

Geometry & Sizing

Not sure which size? Send us your height and inside leg measurement — we'll recommend the perfect fit.

Email: hello@bamboobicycleclub.org

What's Included

5 heat-treated Moso bamboo tubes (pre-shaped)
Carbon fibre tow + two-part epoxy resin
Plywood alignment jig for precise geometry
CNC machined headtube, BB shell (BSA 68mm) & dropouts
15+ hours of step-by-step video tutorials
Community access — 4,000+ builders worldwide

Build Time: 35–50 Hours

Custom builds take longer — you're designing geometry from scratch.

Design & prep: 5–8 hrs · Jig & tubes: 6–10 hrs · Bonding: 12–18 hrs · Curing: 24–48 hrs · Finishing: 8–12 hrs

We work with you on geometry before shipping. Direct support throughout.

Durability & Strength

Lifespan: 8–12 years with proper care

Tensile strength: ~28,000 PSI — comparable to mild steel

Failure rate: Under 1% across 4,000+ builds

Bamboo naturally absorbs road vibration better than metal, giving you a smoother, more comfortable ride. Tested with Swansea University.

Shipping & Customs

Ships to 36+ countries worldwide.

UK: £12, 5+ working days

EU & International: Confirmed at checkout

Full tracking on all orders. We ship twice a week from our London workshop.

Help & Support

You're not alone in this build.

15+ hours of video tutorials
Active builder community (4,000+ members)
Comprehensive build guides
Direct support from James and the team

95% of our builders have zero prior experience.

View full details

Bamboo Tube Set

5 heat-treated Moso bamboo tubes, pre-shaped and ready to build

Carbon Fibre & Epoxy

Pre-cut carbon fibre tow with two-part epoxy resin

Alignment Jig

Plywood jig — ensures your frame is straight and true

Metal Components

CNC machined headtube, BB shell (BSA 68mm), and dropouts

Video Tutorials

15+ hours of step-by-step guidance on YouTube

Builder Community

Join 4,000+ builders for support, tips, and inspiration

★★★★★

"I wanted something nobody else had. Now I ride a bike that's completely mine — geometry, shape, everything."

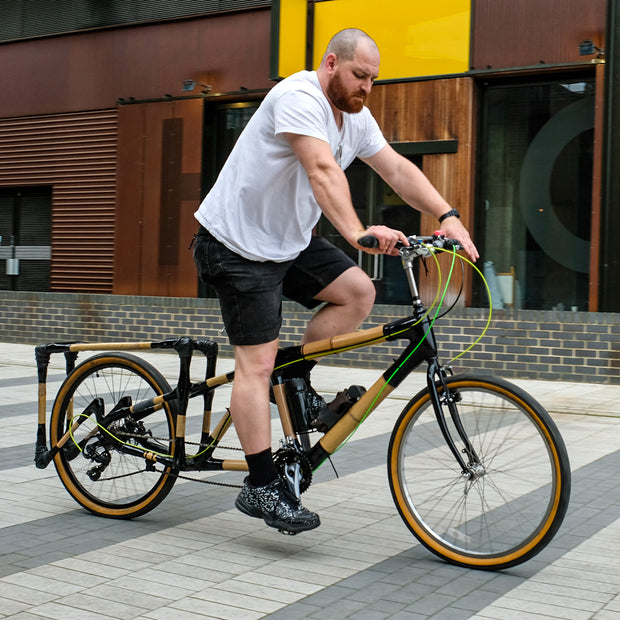

Custom Kit Builder — Custom frame, bespoke geometry

5–8 hours

Design & Prepare

Work with us on geometry. We'll help with tube angles and dimensions.

6–10 hours

Jig Setup & Tube Prep

Custom jig setup for your unique geometry. Precision matters here.

12–18 hours

Bonding & Wrapping

The main build. More joints = more time, but more creative freedom.

24–48 hours

Curing

Full cure for maximum joint strength.

8–12 hours

Finish & Fit

Sand, seal, and admire what you've created. Truly one-of-a-kind.

Common Questions

Do I need special tools?

No power tools required. Basic hand tools: hacksaw, files, sandpaper, measuring tape, and a work surface. Everything else is in the kit.

What if I make a mistake?

Most mistakes are fixable. Epoxy can be sanded and re-applied. Bamboo is forgiving. If you're stuck, our community has seen every problem — someone will have the answer within hours.

What else do I need to complete the bike?

Fork, wheels, groupset, handlebars, saddle, and finishing components. We offer component packs with everything included, or source parts from any bike shop.

How strong is a bamboo frame?

~28,000 PSI tensile strength — comparable to mild steel, but lighter. Under 1% failure rate across 4,000+ builds since 2012. Tested with Swansea University.
