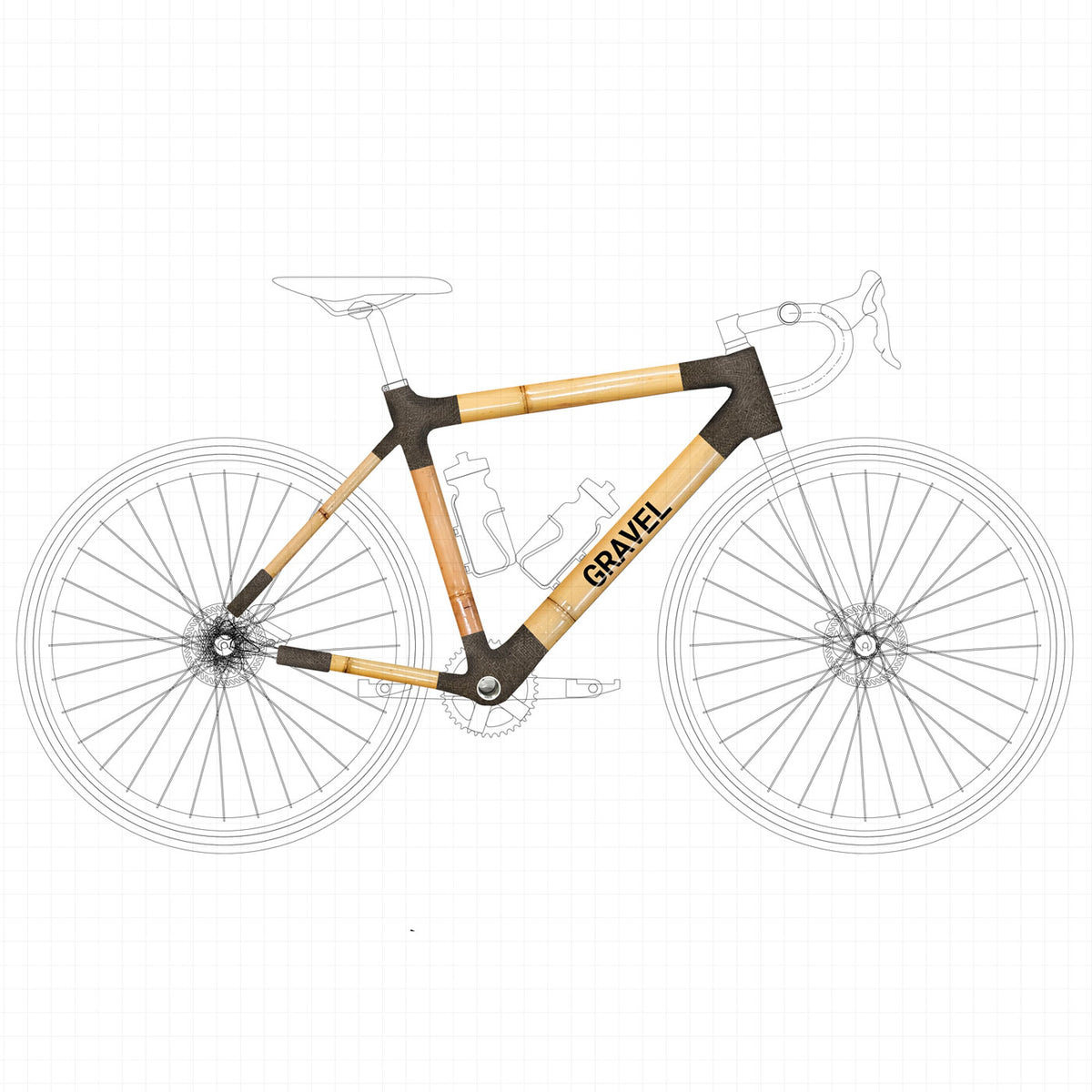

Gravel Frame Build Kit

6 In stock
Home build kit
£410.00
Our gravel frame is extremely versatile for on and off-road usage giving you the freedom to explore. Bamboo is a perfect material for a gravel frame as it's natural dampening properties provide a smooth and compliment ride on gravel for bike packing. Our frames are compatible with all major groupset manufacturers and can be fitted up with a Shimano GRX or Rohloff geared hub.
Size :
£410.00
Terms & conditions
Our gravel frame is extremely versatile for on and off-road usage giving you the freedom to explore. Bamboo is a perfect material for a gravel frame as it's natural dampening properties provide a smooth and compliment ride on gravel for bike packing. Our frames are compatible with all major groupset manufactures and can be fitted up with a Shimano GRX or Rohloff geared hub.
  • Understand how to work with bamboo and shaping to make a bicycle frame
  • Assemble a bicycle jig (which comes with the kit and aligns the frame)
  • Prepare the frame for gluing and how to work safely with glues.
  • Understand how a bike frame is made.
  • Create a frame using our comprehensive manual and videos developed over 10 years.
Our gravel frame is extremely versatile for on and off-road usage giving you the freedom to explore. Bamboo is a perfect material for a gravel frame as it's natural dampening properties provide a smooth and compliment ride on gravel for bike packing. Our frames are compatible with all major groupset manufactures and can be fitted up with a Shimano GRX or Rohloff geared hub.
  • Understand how to work with bamboo and shaping to make a bicycle frame
  • Assemble a bicycle jig (which comes with the kit and aligns the frame)
  • Prepare the frame for gluing and how to work safely with glues.
  • Understand how a bike frame is made.
  • Create a frame using our comprehensive manual and videos developed over 10 years.
  • 44mm head tube, compatible with tapered and straight steerer
  • 68mm BSA bottom bracket English threaded
  • 27.2mm seat insert dropper post compatible.
  • Interchangeable modular dropouts compatible with QR/Singlespeed/Geared hub/12mm thru-axle (1.5 thread axle 164mm)
  • Post mount with Flat mount adapter avalbile.
  • M5 inserts for bottle and rack mounts.
  • Dropout mounts for pannier racks and mudguards
  • Compatible with Gravel fork.

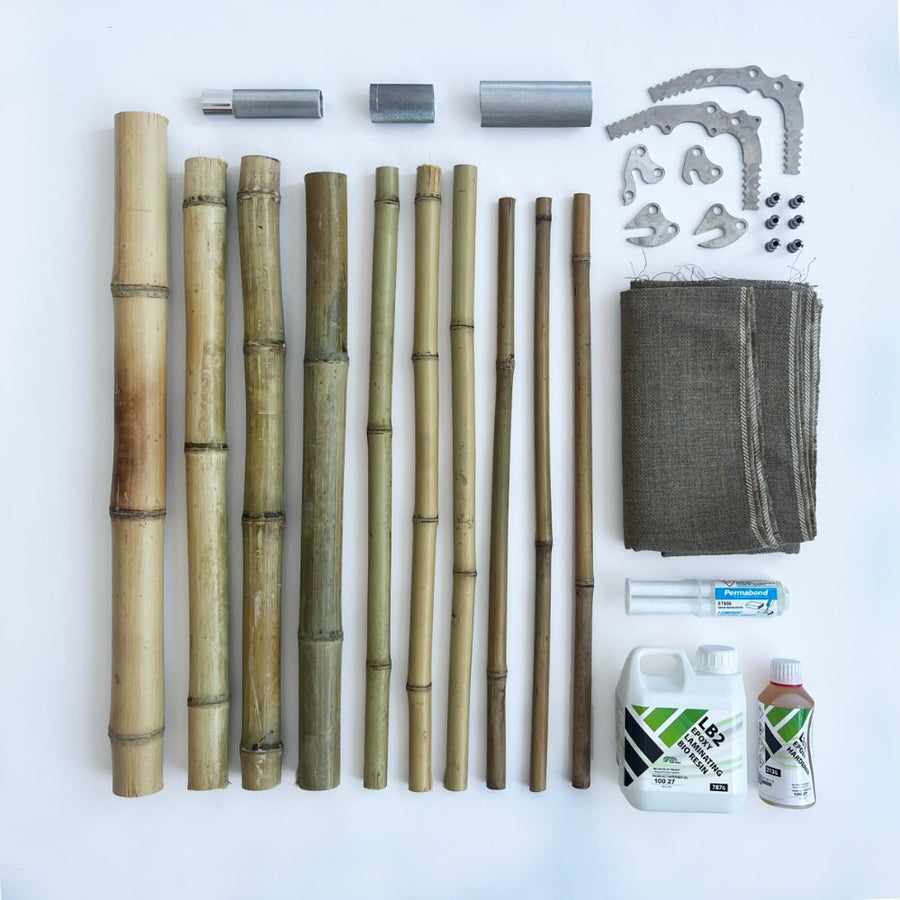

  • 10x Bamboo cut to length and treated
  • 1x Dropouts
  • 1x 68mm bottom bracket
  • 1x Tapered head tube (44mm)
  • 1x 27.2 mm seat sleeve
  • 1x Flax fibre
  • 1x Finishing pack
  • 1x Alignment jig, Technical drawing and Manual
  • 1x Plywood laser cut jig
Small Medium Large XL
A Effective Top Tube 545mm 565mm 586mm 601mm
B Seat Tube Lenth C-T 440mm 490mm 530mm 570mm
C Head Tube Angle 70.5 71 71 71.5
D Recommended Axle to Crown 395mm 395mm 395mm 395mm
E Reach 388 395 402 409
F Seat Tube Angle 74 73.5 73 73
G Bottom Bracket Drop 71mm 71mm 71mm 71mm
H Chainstay Length 445mm 445mm 445mm 445mm
I Head Tube Length 140 160 180 200
Frame Sizing Guide

If you are in between two sizes we recommend going for the smaller size as you can adjust the frame fit on smaller frame but if the frame is two large then you may be unable to adjust. Alternatively choose a custom frame.

Bike Geometry - Introduction

Frame sizes are referred to as geometry, the geometry encompass the shape, length and the angles of the frame. Each frame type will have certain angles and measurements to give you a ride characteristics associated with the frame type.

A road bike will typically move the rider into a more forward position (seat and head tube angles of 72/73 degrees) to maximise power transfer and elongate the rider to improve aerodynamics.

A dutch style bicycle will be another extreme of geometry moving the rider further back (seat and head tube angles of 68 degrees) on the frame to suit relaxed riding and flat terrain as well positioning the rider in a upright position.

You can read many books on geometry! This a brief insight. Try and select a bicycle that suits your requirement and the geometry should match. E.g Road bike for road usage, gravel for mixed on and off road, MTB for off-road trails.

How to check your fit for a frame.

The key measurements used for a stock frame are you inside leg and overall height.

Height

  • Simply stand upright in bare feet, with your back against a wall/doorframe.
  • Place a pen or pencil atop your head and parallel to the floor.
  • Make a small mark on the surface and measure.

Inside Leg

  • In bare feet; stand upright with your back against a wall.
  • Place a book/ruler between your legs and level with your crotch.
  • Have someone measure the distance from the top of the book/ruler to the floor.

If you find that you fall between 2 sizes, the general rule of thumb is to opt for the smaller size. Why you may ask? Well, it’s because it’s generally considered easier to make a bike that’s a little small fit than one that’s too large. There are certain alterations that you can make to a smaller bike to correct the sizing.

These include: lengthening the stem length, crank length and raising the saddle height. It is much more difficult to adjust a bike that is too large to fit the rider. After all, a seat post can only drop down so far. Whereas fitting too short a stem can result in overly responsive (twitchy) steering.

More about components - Traditionally frames would be built at a local bike shop and the frame would determine the fit with fixed component options.

With modern compact frames most of the final frame fit will be done with components to adjust the position of the rider using a broad range of component options like, seatpost type, stem length, handlebar width etc.

Drop us a email to info(@)bamboobicycleclub.org with any questions
