Frame Drawing
Details & specs

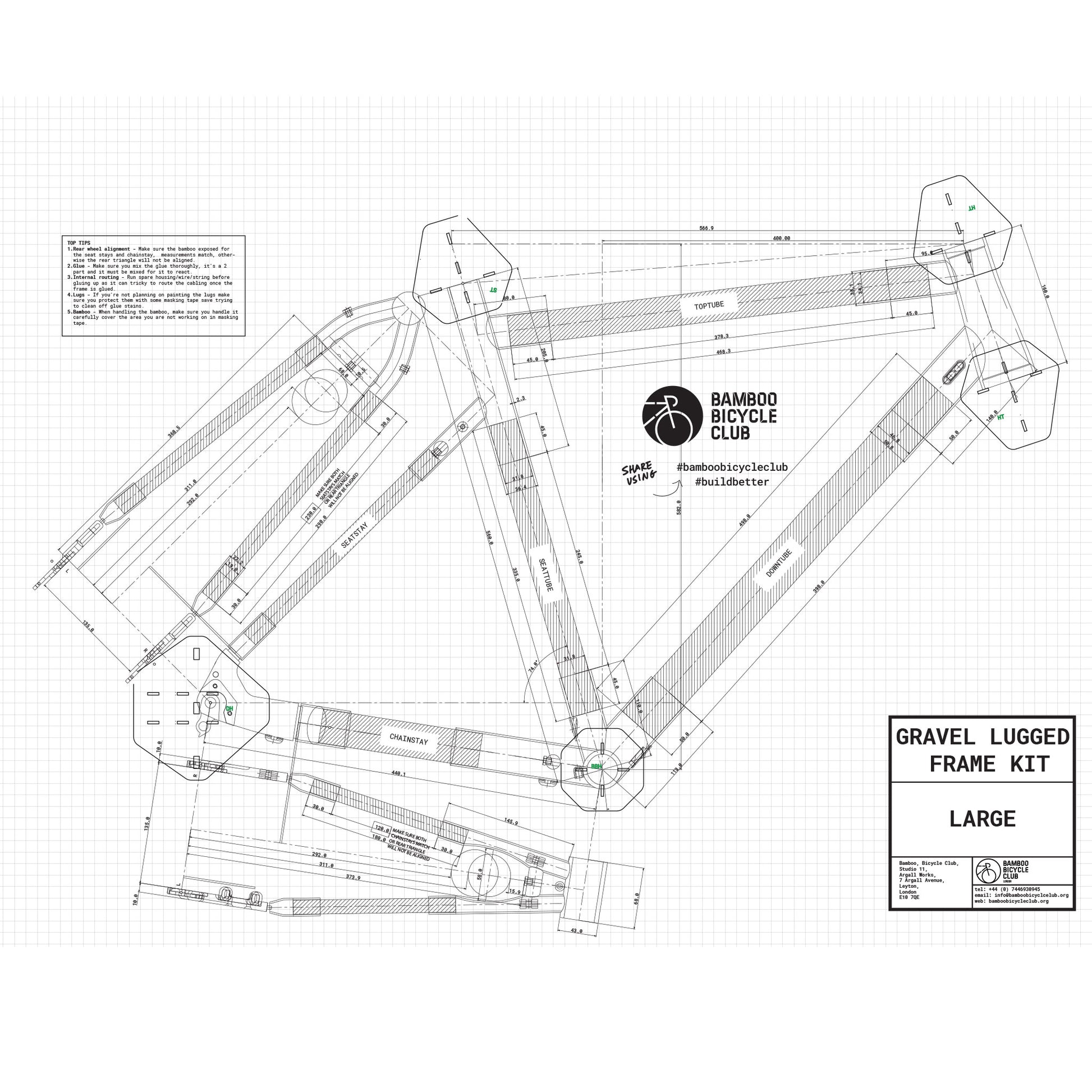

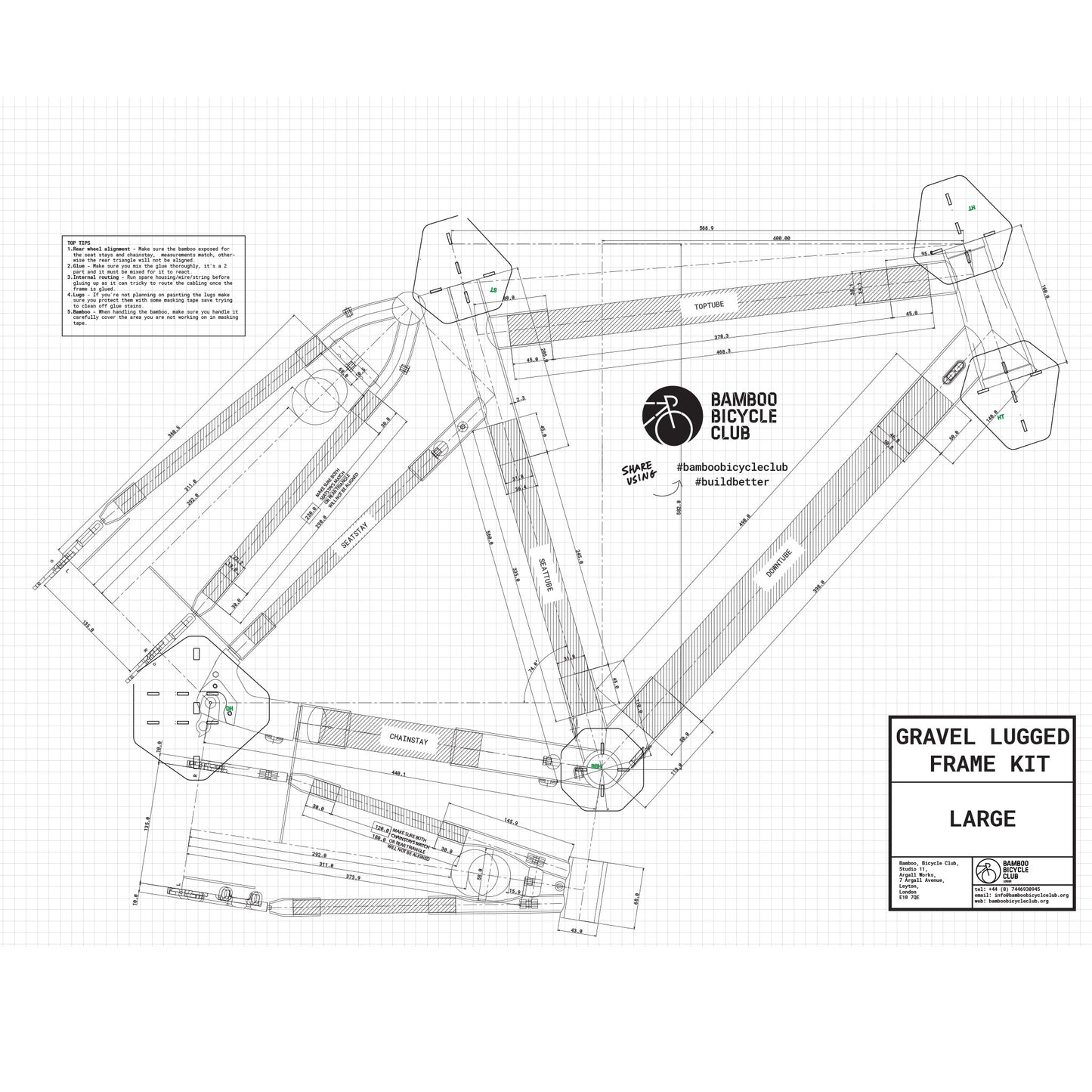

A full-size frame drawing showing the geometry for your build, printed on A0 paper. It pairs with our plywood jig so you can align the tubes accurately during assembly.
Fits: choose the frame type and size to match your build. Each drawing carries the specific geometry for that model and size.
- Format: printed on A0 paper
- Use with: our plywood jig
- Options: Road, Road Lugged, Gravel, Gravel Lugged, 29er, 650B and Cargo (Bullitt style), in Small, Medium, Large and XL
Works with standard frame builds. Contact us if unsure about compatibility with your specific build.
UK: £12 · Europe: £25 · USA: £45 · Rest of world: £75.
Tracked delivery, dispatched from our London workshop.
14-day returns on unused items in their original packaging.
Not sure if this part is right for your build?
Email: info@bamboobicycleclub.org
Facebook Group: Join 4,000+ builders
what's in the box.
Everything listed in the description, packed by hand. Not sure it fits your build? Book a free 10-minute call before you order.
no customs bill at the door
| Destination | Shipping | Duty & tax |
|---|---|---|
| United Kingdom | £12 | Included |
| Europe | £25 | Paid by us |
| USA & Canada | £45 | Paid by us |
| Rest of world | £75 | Paid by us |
The price at checkout is the price the kit costs you. We pay the import duty and tax before it ships, so the courier has nothing to collect when it arrives.
Sydney, Large kit: £385 kit + £75 shipping = £460 total, and nothing further on delivery.
Packed by hand and shipped twice a week, tracked all the way. Kits have reached 45 countries.
