Context

A bamboo frame built the traditional way — wrapping and bonding every tube junction by hand — takes around 70 hours. That is rewarding, but it is also a real barrier for a lot of people who want to build their own bike but cannot give up two working weeks to do it. So we set out to keep everything good about a hand-built bamboo frame while making it far quicker and more repeatable to assemble.

What we did

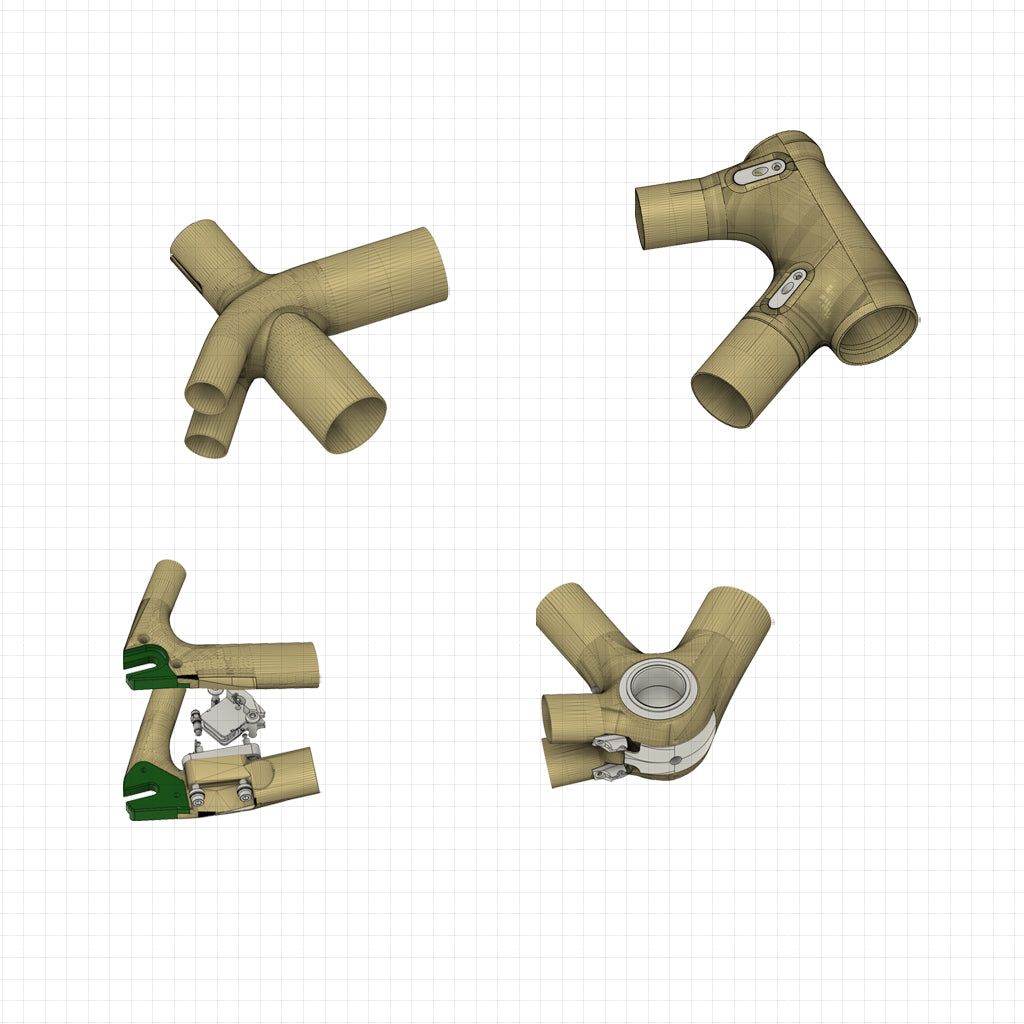

We developed pre-moulded carbon lugs — the joints that hold the bamboo tubes together. Working with academics at Oxford Brookes University (with the University of West London), we 3D-printed the lugs in nylon-reinforced carbon fibre and bonded the frame with a high-strength urethane adhesive. Designing the lug around the frame let us build in the things a good frame needs from the start: stiffness for efficient power transfer, the correct tolerances for standard components, and tidy internal cable routing.

We proved the idea in the most public way we could. At the Design Museum in London, during the Cycle Revolution exhibition, we designed, 3D-printed, built and test-rode the world's first 3D-printed bamboo bicycle — live, in front of visitors.

Verified outcome

  • The pre-moulded carbon lug became BBC's easy-build kit — a real, shipping product.
  • It cuts the frame build time from around 70 hours to about 4 hours — roughly a 75% reduction — while keeping the bike genuinely buildable at home with basic tools.
  • The world's-first 3D-printed bamboo bike was built live in about 8 hours at the Design Museum.

Why it matters

As a society we need more local production, more low-carbon materials, and more products that can be built and repaired by the people who own them. The carbon lug is how we made a hand-built bamboo frame something far more people can actually take on — without losing the craft, the ride quality, or the bamboo's natural vibration damping.

"By combining the lug with bamboo, it offers a natural vibration dampening and resolves the current bicycle market's lack of flexibility and high costs." — Designboom
